comprehensive MPEG stream analysis
The new StreamScope MT-70 is the latest evolution of our award-winning line of professional MPEG stream analyzers.
Full-featured analysis and monitoring

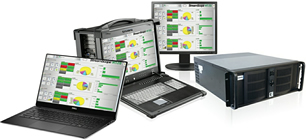

Available on portable and rackmount platforms, MT-70 provides a full complement of state-of-the-art features, including remote web browser access, continuous stream recording, SCTE-35 logging, custom dashboards, optional ATSC 3.0 inputs, and more.
For troubleshooting and quality of service
Using the new StreamScope MT-70, TV engineers can easily locate and solve problems in today's MPEG transport streams from multiple Ethernet, DVB, QAM, ASI and other inputs. And integrated with Stream Enterprise, they can keep a constant check on service issues and quality across their TV networks.
With the StreamScope MT-70, you get all the standard MT-60 features, plus…
- Web analyzer application for remote monitoring and control
- Continuous transport stream recording for postmortem analysis
- Integrated SCTE-35 logging for CATV ad splicing
- StreamScope Enterprise management system compatibility
- Customizable user dashboards for different personnel
- Linux Ubuntu 24.04 with quarterly OS security updates
- Optional HD-SDI input for pre-encode analysis
- Optional ATSC 3.0 broadcast RF and IP inputs
StreamScope MT-70 Features:
- Handles 64/256 QAM, ASI, Quad ASI, 1GigE/10GigE, 8-VSB, and DVB inputs
- With 10 GigE interface, analyzes up to 10 inputs at a time (20 MDI IP routes)
- RF, DVB, SCTE-35, SCTE-142, ISDB, MDI IP analysis and more
- Remote video and audio rendering
- ATSC 608/708, SCTE 20/21, and DTH closed captioning verification, decoding, and recording
- MPEG 2/4 SD/HD video rendering, thumbnails, buffer and bitrate graphs
- Continuous transport stream recording for postmortem troubleshooting.
- Optional ATSC 3.0 analysis software
- Platform support for HD-SDI

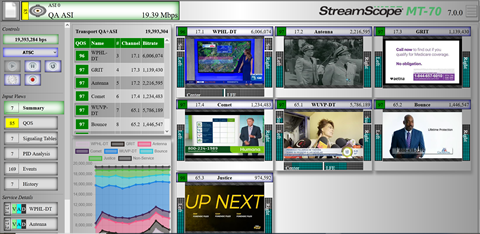

- Web Analyzer client application for convenient web-based stream analysis and QoS scoring
- HEVC analysis for HD and 4K video quality
- Real-time PCR jitter analysis for synchronization
- Transport stream and log file recordings, and ASI playout options
- Patented PSIP/SI cross-table consistency analysis
- Optional single tuner RF for 8VSB, QAM or OFDM with advanced RF analysis
- Optional multi-tuner RF input card for simultaneous 8VSB, QAM, and OFDM with enhanced RF analysis
- Audio loudness, buffer, and dialnorm graphs, with triggered recordings of CALM Act violations
- RF MER/BER signal-to-noise-ratio graphs
- Past and present EPG program guides and metadata
- Frame-by-frame Group of Pictures (GOP) analysis of I/B/P frames
- Client-based IGMP configuration, VLAN tagging, and IP multicast support
- SCTE-18 EAS message analysis and logging
- SCTE-35 DPI analysis and logging
- Connectivity with StreamScope RM remote monitors
- Optional StreamScope Enterprise management, with customized dashboards
- StreamScope XM Combo upgrade option for easy migration to ATSC 3.0.
- 4U rackmount server and hand-carrying portable platforms
StreamScope MT-70P Specifications:
- Screen (standard): 17" 1280 x 1024 px LCD with anti-glare glass
- Screen (HDT): 17" 1920 x 1080 px 16:9 HD
- CPU: Intel Xeon quad-core 3.5 GHz 10 Mb cache
- RAM: 2 x 8 DDR3 (16GB total)
- Hard Drive: 1TB SATA disk
- Video Card: EVGA nVidia GT 710 1GB
- Expansion slots: Five full-length
- Data Ports:
- Eight USB 3.0
- Two USB 2.0
- Two GigE RJ-45 LAN
- One D-type parallel port
- Video ports: VGA, HDMI, and DVI
- Audio port: 7.1 HD
- Optical Drive:Slim DVD-RW
- Power Supply: 650W Active PFC 80 Plus ultraquiet
- Case: Rugged aluminum with rubber corners
- Speakers: Two built-in 3-watt
- Keyboard: 104-key full-size with touchpad
- Carrying case: Padded with wheels
- OS: Ubuntu
- Size: 17.05" H x 13.62" W x 8.9" D
- Weight: 26.5 lbs (12 kg)
- Environmental: Operating temp: 0-50 C, operating humidity: 10%-90%
StreamScope MT-70R specifications:
- 4U rackmount server with 20" sliding rail kit
- Size: 7.0" H x 19.0" W x 20.8" D
- Weight: 43.5 lbs (19.7 kg)
- CPU: Intel Xeon quad-core 3.5 GHz 10 Mb cache
- RAM: 2 x 8 DDR3 (16GB total)
- Hard Drive: 1TB 3.5" SATA disk
- Video Card: EVGA nVidia GT 710 1GB
- Expansion slots: Five full-length
- Data Ports:
- Eight USB 3.0
- Two USB 2.0
- Two GigE RJ-45 LAN
- One D-type parallel port
- Video ports: VGA, HDMI, and DVI
- Audio port: 7.1 HD
- Optical Drive:Slim DVD-RW
- Power Supply: 650W Active PFC 80 Plus ultraquiet
- OS: Ubuntu
- Environmental: Operating temp: 0-45 C, operating humidity: 10%-90%
Specifications subject to change.
