StreamScope Enterprise logo

QoS management system

StreamScope Enterprise Source Overview page

The StreamScope Enterprise server application monitors and manages ATSC 1.0 and ATSC 3.0 streams and services throughout DTV networks to assure quality of service, FCC compliance, reduced downtimes, and viewer retention.

Enterprise-wide DTV service quality assurance

Hyperlinked to StreamScope MT-60, RM-60, and XM stream analyzers and remote monitors, Enterprise provides a centralized platform for remote service monitoring and fleet management, with custom dashboards for localized markets and key personnel.

StreamScope Enterprise network diagram

For ATSC 1.0, ATSC 3.0, and hybrid networks

StreamScope Enterprise supports ATSC 1.0 and ATSC 3.0 input sources, enabling TV engineers to simultaneously monitor both MPEG and ROUTE/MMTP transport streams. With at-a-glance overviews, service details, and fleet management actions, it's the quality management solution for today’s DTV networks.

To view a free webinar, click StreamScope Enterprise. ►

Input sources compatible with StreamScope Enterprise:

  • StreamScope MT-60 MPEG analyzers, release 6.1 or later
  • StreamScope RM-60 transport stream monitors, release 6.1 or later
  • StreamScope XM ATSC 3.0 stream analyzers, release 1.2.1 or later

StreamScope Enterprise key features:

  • Real-time ATSC 1.0 and ATSC 3.0 input, transport, and service monitoring.
  • At-a-glance QoS status, bitrate, bandwidth, and system resource displays.
  • Hyperlinks to managed data sources for remote troubleshooting.
  • Custom web-based dashboards copied and viewed as URLs.
  • Rotating video thumbnails from all sources grouped by services.
  • Drill-down data details for inputs, transports, services, and streams.
  • Integrated with Avateq AVQ200 RF Signal Inspector™.
  • Remote source configuration backup and restore actions.
  • Online and offline software license activation for updates.
  • User-edited color-coding for mapping data sources.
  • System and source log files.

Some StreamScope Enterprise web pages. Click to enlarge.

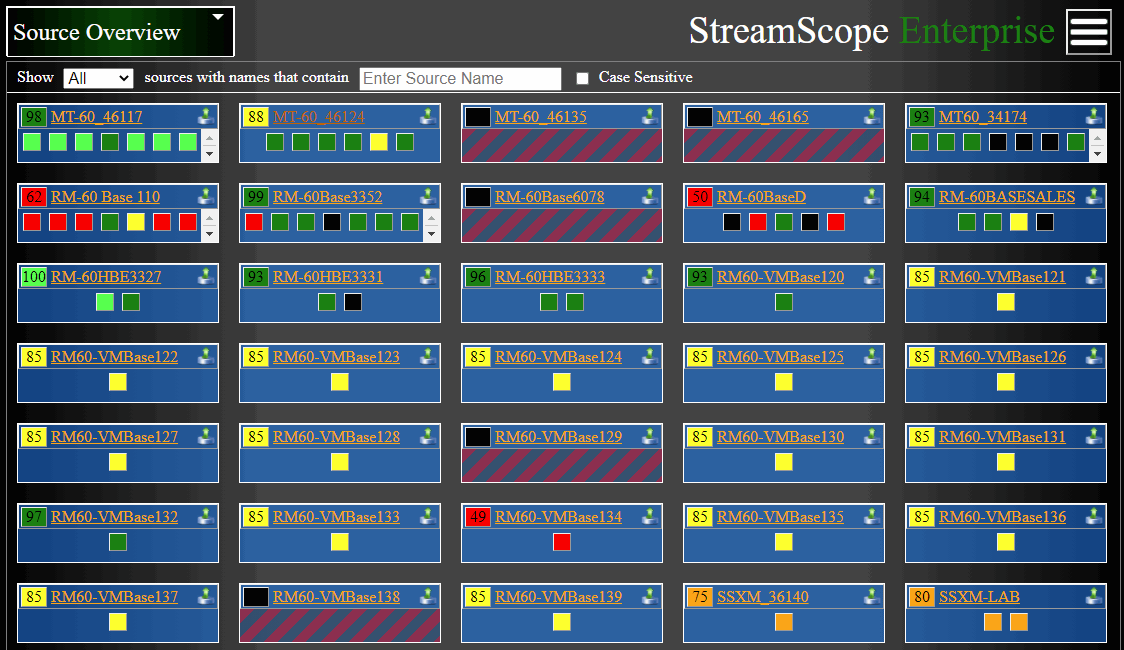

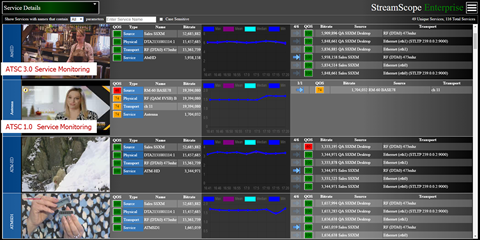

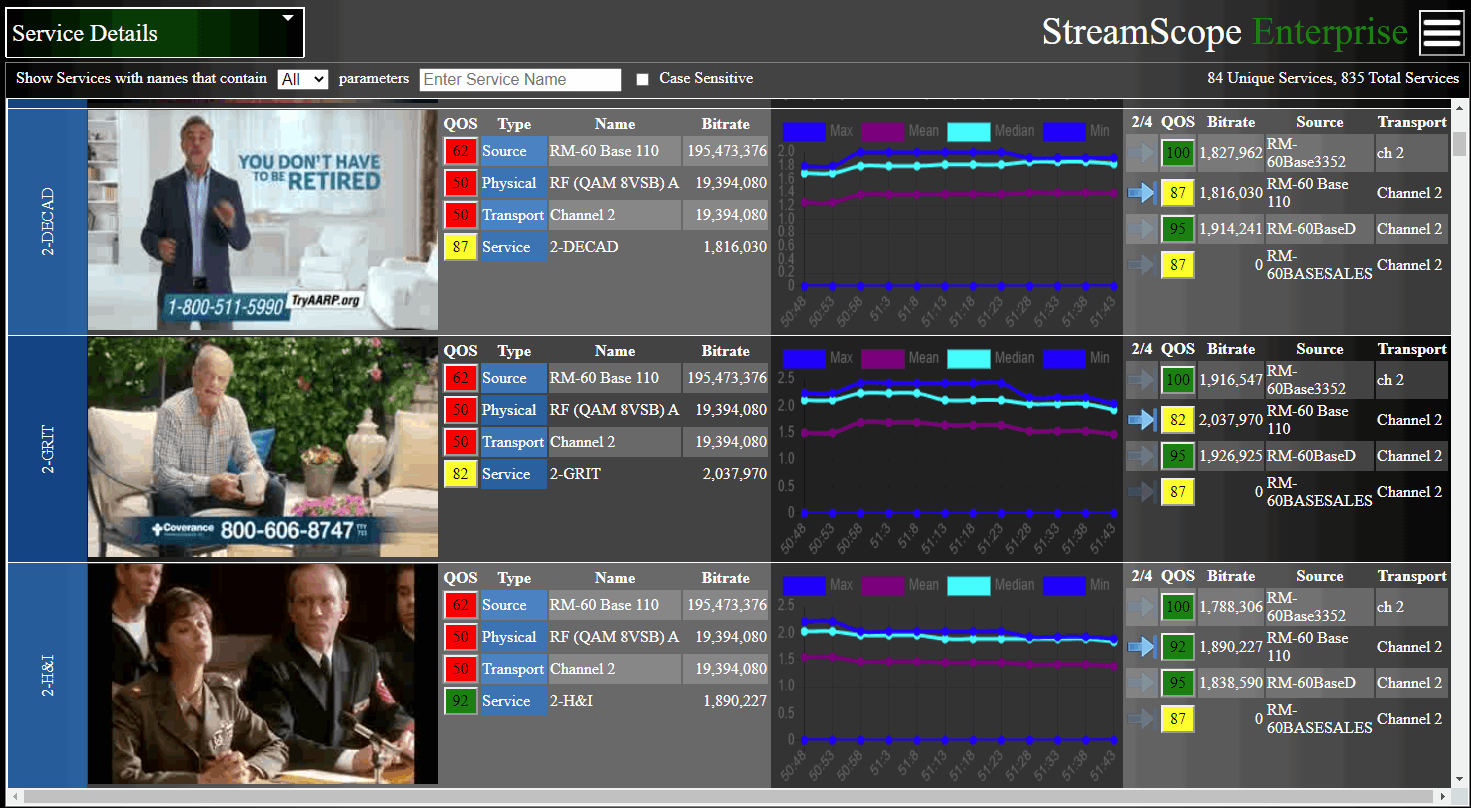

StreamScope Enterprise Source Overview StreamScope Enterprise Service Details

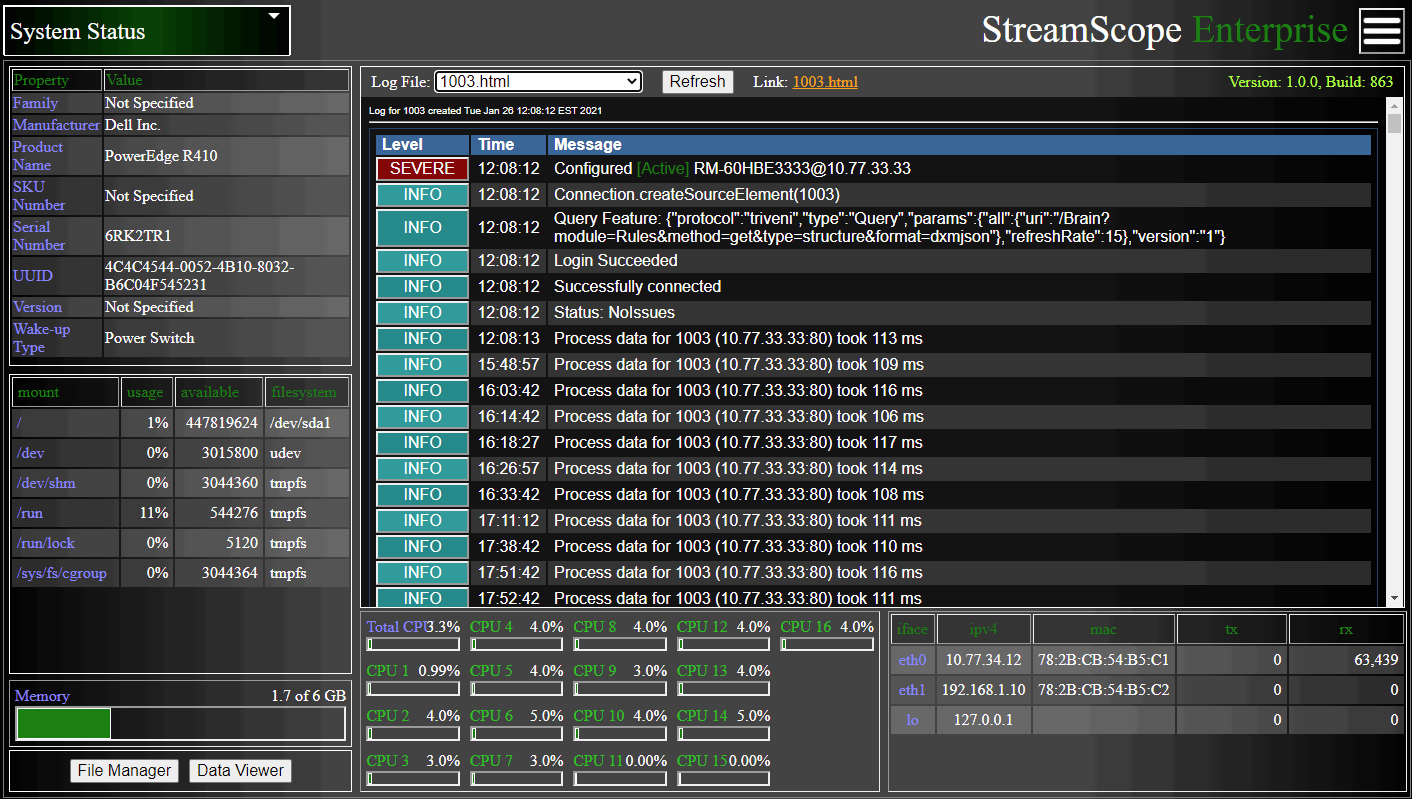

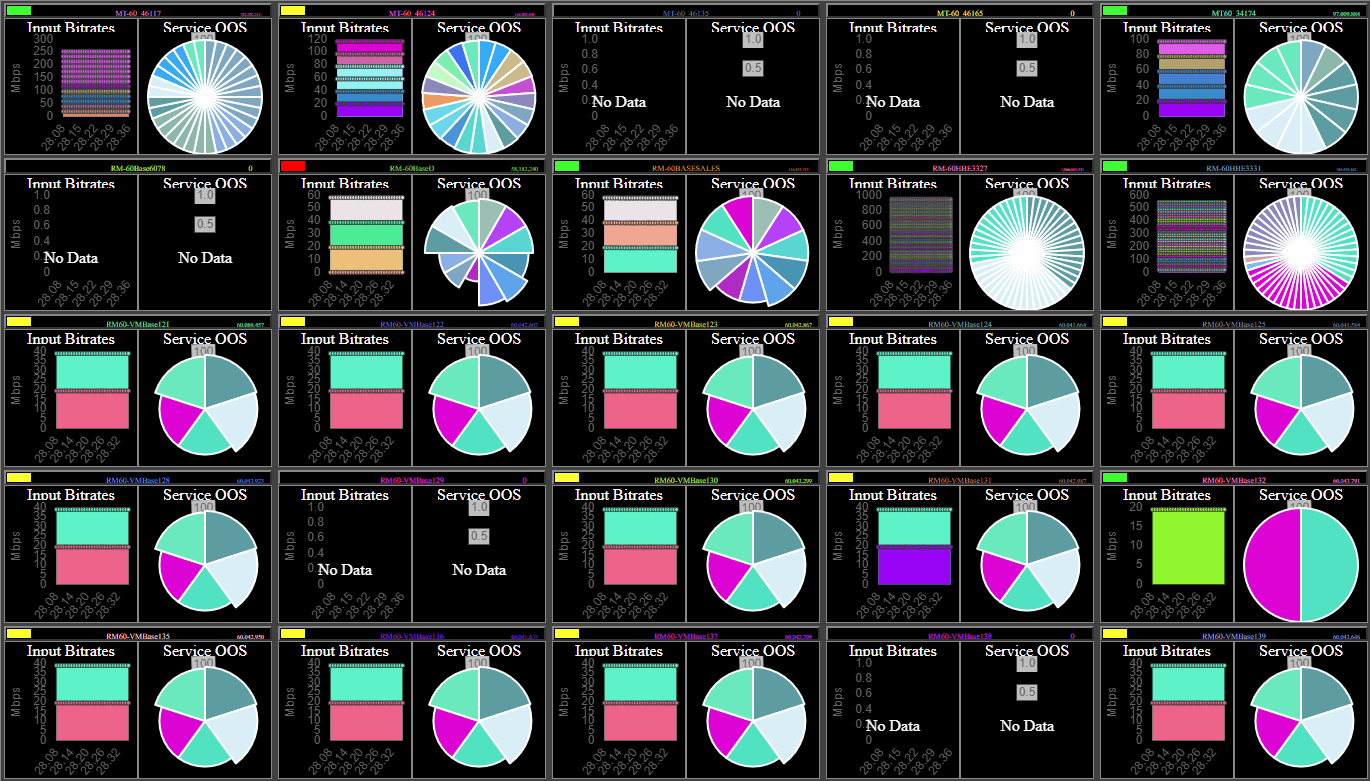

StreamScope Enterprise Fleet Monitor Dashboard StreamScope Enterprise System Status
